Heavy-Duty Power Head Drives: 10K Series Orbital Motor Applications and Field Assessment

In equipment like rotary drilling rigs, horizontal directional drills (HDD), and anchoring rigs, the power head serves as the core actuator for cutting and rock breaking. Complex soil and geological conditions force the power head to operate under severe conditions marked by high pressure, heavy impact loads, backpressure, and frequent reversals. This requires driving motors that deliver high torque density alongside exceptional low-speed stability and structural durability. As a benchmark among heavy-duty disc-valve motors, the 10K series orbital hydraulic motor has become a go-to choice for power head drives thanks to its high pressure rating and massive torque output.

The 10K motor is engineered specifically to squeeze maximum torque out of a compact footprint. It relies on a disc-valve distribution design mechanically decoupled from the output shaft. An internal balance plate automatically compensates for wear and maintains tight clearance sealing under continuous high pressure, keeping internal leakage to a minimum. Instead of standard fixed-tooth surface contact, its geroler set incorporates precision needle rollers. Converting sliding friction into rolling friction cuts starting resistance significantly. This allows the power head to deliver smooth, steady torque even during low-speed rock breaking, eliminating stick-slip and stutter. Additionally, heavy-duty tapered roller bearings at the front handle residual shock loads fed back from drilling operations.

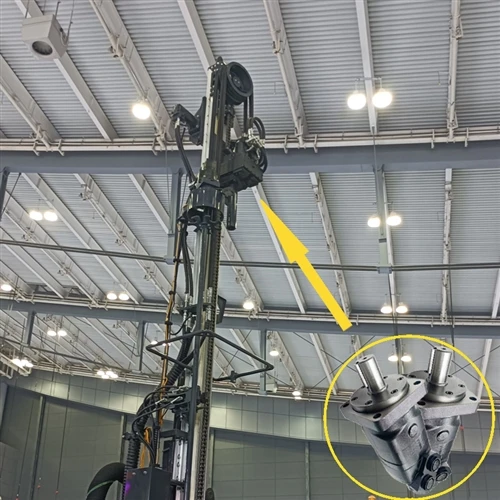

In field designs, the 10K motor fits various power head tonnages. Small and mid-sized rigs leverage its high displacement and torque by plugging the motor shaft directly into a planetary gearbox, keeping the power head profile compact. Larger rigs and diaphragm wall equipment often use dual- or multi-motor setups routed through a shared gearbox. Adding a series-parallel control valve allows quick switching: parallel mode delivers low-speed, high-torque output for hard-rock drilling and freeing stuck bits, while series mode bumps up speed at lower torque for fast drilling through soft layers and rapid unladen retraction.

Proper system setup and routine maintenance dictate how long a 10K motor lasts on a power head. High-pressure operation causes pressure buildup inside the motor housing. That makes an independent, low-backpressure case drain line strictly mandatory-routed straight back to the tank with backpressure kept strictly according to the requirement. Teeing the drain into the main return line will blow out the shaft oil seal and cause heavy external leaks. Sudden rock jams also generate massive pressure spikes, so dual cross-port relief and anti-cavitation valves must sit right at the motor ports for overload protection. Finally, keeping up with filter changes and monitoring oil temperature prevents particle scoring on the valve disc and avoids heat-induced viscosity loss that drains system power.
