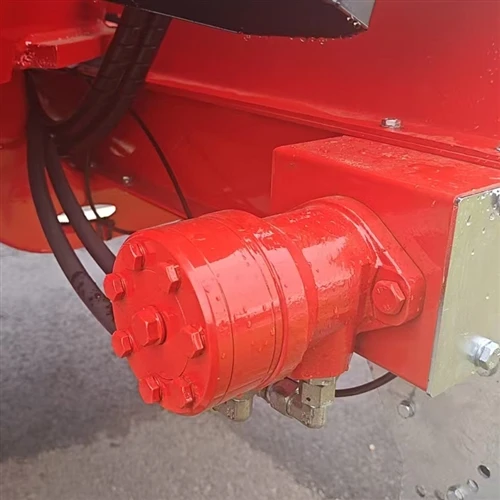

Orbital Hydraulic Motor Selection: Why the Drive Unit is the Real Make-or-Break for OEM Equipment
Jul 30, 2026| In agricultural, construction, and mobile machinery, orbital hydraulic motors (gerotor/geroler motors) are among the most dependable workhorses for rotary drive applications. Their ability to deliver high low-speed torque in a compact envelope-without relying on electrical power-makes them the default choice for dusty, muddy, and explosion-prone off-highway environments.
However, many OEM engineers and buyers fall into the trap of selecting motors based solely on displacement, envelope dimensions, and unit price. In reality, what's on the spec sheet rarely tells the full story. The real performance gap is forged on the shop floor.
When equipment hits the field, here is what actually separates a high-performance orbital motor from a failure-prone one:
1. Gerotor/Geroler Profile Design & Valve Distribution Accuracy The gerotor/geroler set is the heartbeat of any orbital motor. If the trochoidal tooth profile lacks precision, or if the timing geometry of the valve plate/spool is slightly off, you end up with excessive internal leakage and low volumetric efficiency. In the field, this translates to low-speed stick-slip (crawling) and poor breakaway torque. Master meeting these tolerances requires deep meshing theory and real-world application tuning.
2. Micron-Level Machining & Geometric Tolerances Orbital motors are precision hydraulic components operating with extremely tight internal clearances. Tooth surface finish, rotor-to-stator matching clearance, and shaft concentricity must be tightly controlled-often within microns. Without high-precision CNC grinding, dedicated gear grinders, and CMM inspection, lot-to-lot consistency will suffer, leading to erratic performance across production runs.
3. Heat Treatment: The Fine Line Between Wear Resistance and Premature Fatigue Components like the ring gear, drive link, and output shaft endure relentless cyclic pressure spikes and frictional loads. Even with immaculate machining, improper carburizing, quenching, or nitriding will ruin a motor. An inadequately heat-treated motor might run fine on day one, but surface spalling and rapid wear will soon destroy its efficiency or cause catastrophic seizure.
4. End-of-Line (EOL) Bench Testing: Don't Treat Inspection as a Formality Quality control isn't just about measuring dimensions. Every motor off the line should undergo rigorous EOL hydraulic bench testing-including no-load break-in, delta-P pressure drop testing, high-oil-temp internal leakage checks, and dynamic torque efficiency profiling. Empirical test data is the only real guarantee against field downtime.
For OEM equipment manufacturers, sourcing orbital motors isn't just about buying a off-the-shelf part. It's about finding a partner capable of co-engineering and long-term supply chain stability. From custom porting and splined shaft options to specialized shaft seals for harsh environments, tailored engineering support is what keeps warranty claims at bay.
